ASCE 7-22 and the Alabama Building Code require site-specific seismic data when local soil conditions can amplify ground motion. In Birmingham, that requirement takes on special meaning. The underlying geology here alternates between hard Paleozoic limestone and deeply weathered shale in the valleys, a contrast that creates significant velocity anomalies across short distances. A single N-value from an SPT drilling log can tell you what is happening at one point, but it does not reveal the lateral extent of a pinnacled rock surface or a mud-filled seam between two limestone ledges. Seismic tomography fills that gap. By measuring P-wave and S-wave travel times with closely spaced geophones and inverting the data with ray-tracing software, we build a continuous velocity model of the subsurface. This approach has proven essential for projects near the Red Mountain Expressway cut, where the stratigraphy dips steeply southeast and rock quality changes dramatically within a single block, requiring geophysical data that can keep pace with the complexity of the Appalachian structural framework.
In Birmingham's folded and faulted terrain, a velocity gradient from 600 m/s to 3,500 m/s over 30 feet is common, and seismic tomography maps that transition with lateral resolution no borehole program can match alone.
Our approach and scope

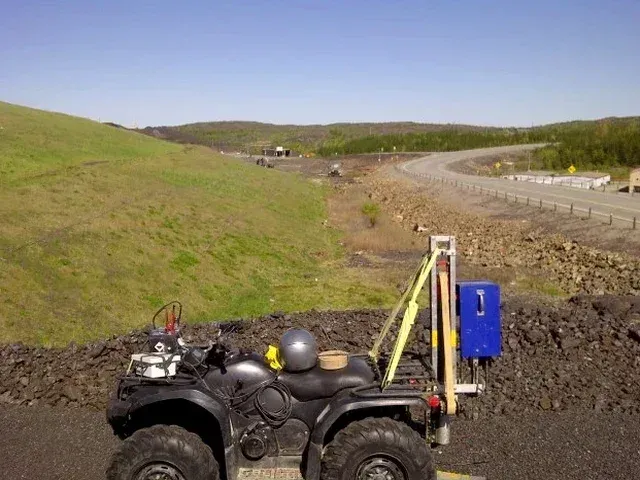

The contrast between the Shades Valley floor and the ridges around Vestavia Hills illustrates why seismic tomography matters here. In the valley, we often encounter 20 to 40 feet of residual clay and alluvium over weathered Conasauga shale, a sequence that yields P-wave velocities in the 400 to 900 m/s range. Move upslope toward the Silurian outcrops near the Cahaba River, and competent dolomite with velocities above 3,500 m/s can appear within 15 feet of the surface. Conventional boring programs miss these abrupt transitions unless the borehole density is prohibitively high. We deploy 24-channel or 48-channel spreads with hammer, weight-drop, or accelerated weight-drop sources depending on the target depth, collecting refracted first arrivals and, when the survey geometry allows, reflected phases from deeper impedance contrasts. The processing workflow includes travel-time picking with reciprocal consistency checks, time-term inversion, and tomographic reconstruction using curved-ray algorithms. For projects where shear-wave velocity is critical, such as
liquefaction assessments near the reclaimed floodplain deposits along Village Creek, we supplement the P-wave survey with MASW or downhole methods to constrain the Vs30 profile. The final deliverable is a color-contoured cross-section showing velocity layering, interpreted bedrock surface, and zones of anomalous low velocity that may indicate solution features or fracture concentration. This level of detail has helped our clients avoid costly over-excavation in limestone pinnacle zones and locate competent bearing strata with fewer borings.
Local ground factors
Birmingham sits at approximately 600 feet elevation on the southern end of the Appalachian fold-and-thrust belt, where Cambrian through Pennsylvanian strata have been pushed northwestward into a series of parallel ridges and valleys. The 2003 Fort Payne earthquake, a magnitude 4.6 event centered about 90 miles northeast, was felt strongly in the city and reminded engineers that the Eastern Tennessee Seismic Zone remains capable of moderate shaking. Combined with IBC Site Class B to D transitions driven by shallow rock in ridges and deep soils in valleys, the seismic response across a single site can vary enough to shift the design base shear. Karst dissolution in the Bangor and Tuscumbia limestones adds another layer of uncertainty: a velocity inversion or shadow zone in the tomogram often correlates with a clay-filled cavity or a dome-shaped rock head that can concentrate stress beneath a footing. By using seismic tomography alongside targeted borings, our team identifies these features before excavation begins, reducing the risk of differential settlement and construction delay in a city where the ground conditions can change as abruptly as the topography.
Common questions
How deep can seismic tomography investigate in the Birmingham area?
With a 48-channel spread and an accelerated weight drop source, we routinely image to depths of 100 to 120 feet in most Birmingham soil and rock conditions. Greater depths are achievable with seismic reflection techniques, though resolution decreases. The actual penetration depends on the velocity structure: in the stiff clays and weathered shale of the valleys, a sledgehammer source may only reach 40 to 60 feet, while the same source on exposed limestone can return usable arrivals from beyond 80 feet. We select the source and spread geometry after reviewing available boring logs and geologic maps for the specific site.
What does seismic tomography typically cost for a site in Birmingham?
How does seismic tomography compare to boring logs for mapping rock surface?
Borings give you a direct measurement at one location, but in Birmingham's karst and folded-rock terrain, the rock surface can vary by 10 to 20 feet between two borings 50 feet apart. Seismic tomography provides a continuous velocity cross-section that captures these undulations, pinnacles, and low-velocity zones. We use the two methods together: borings calibrate the velocity-to-lithology conversion, and the tomogram extends that calibration laterally across the entire site, reducing the number of borings needed to characterize complex ground.
Can you perform seismic surveys on busy urban sites with traffic vibration?
Yes, though it requires careful planning. Traffic vibration from roads like US-280 or I-20 can introduce noise in the 5 to 25 Hz band that overlaps with deep refraction arrivals. We mitigate this by scheduling surveys during low-traffic hours, using higher stack counts at each shot point, deploying planted geophones with good ground coupling, and applying band-pass filters during processing. If the site is extremely noisy, we may recommend a weight-drop source with higher energy output to improve the signal-to-noise ratio. The resulting data quality is typically sufficient for engineering-grade interpretation.
